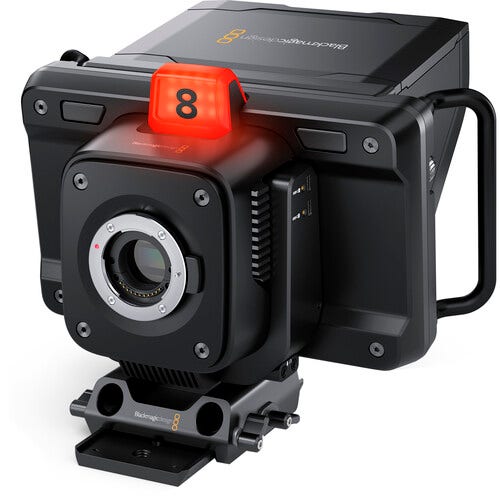

Blackmagic Design Studio Camera 4K Plus

The technical details behind this camera
Produce high-quality broadcast with the Blackmagic Design Studio Camera 4K Plus. This studio camera features an effective 17.78mm x 10mm (Four Thirds) sensor size and a shooting resolution of 3840 x 2160 (Ultra HD), allowing you to shoot up to 60fps. It features an impressive 13-stop dynamic range, providing your production with detailed shots and better colour reproduction. Its body is made with lightweight carbon fibre-reinforced polycarbonate composite. It is designed with a huge seven-inch touchscreen LCD, an integrated stereo microphone, a built-in mono speaker. This camera supports a 3.5mm headphone jack audio output, an HDMI 2.0 for video output, and a 3.5mm Stereo Input for analogue audio input. It has also two USB Type‑C 3.1 Gen 1 for external recording and control. Moreover, it has two 1/4-inch tripod mount and a 3/8-inch tripod mount for mounting options. It enables iris, focus, and zoom control on supported lenses.

This studio camera features a large seven-inch touchscreen LCD with 1920 x 1200 resolution, allowing operators to frame shots easily. It has also a screen brightness of 600 nits for comfortable viewing. This touchscreen LCD also features an accessible menu for easy adjustment.

The Blackmagic Design Studio Camera 4K Plus allows users to be in control of their shots, thanks to its buttons and knobs. Apart from the touchscreen LCD, this camera provides ease of adjustment with its knobs on the right side for brightness adjustment, focus peaking, and adjustment of contrast. It has also customisable buttons for easy access to functions such as zebra, LUTs and false colour.

Produce outstanding broadcast quality with the Blackmagic Design Studio Camera 4K Plus. studio camera features an impressive 13-stop dynamic range for truer colour and detailed reproduction. It also features a dual native ISO of 0dB and 18dB gain, with a primary native ISO of 400, which is ideal for studio lighting, and a secondary base of ISO 3200 which is ideal for poorly lit environments.

• Designed as the perfect studio camera for ATEM Mini
• 7" High-Brightness HDR Touchscreen LCD
• Records Blackmagic RAW, Up to 25,600 ISO
• Capture up to UHD 4K 3840 x 2160p60

• Shock- and wind-resistant built-in microphones
• Supports 11 popular languages
• Built-in Tally light

• Blackmagic Studio Camera 4K Plus
• Blackmagic Studio Camera Sun Shade
• Tripod Mount compatible with 15mm lightweight rails
• Turret Dust Cap
• External 12V DC power supply with locking connector and adaptor
• Tally Indicator Set

Blackmagic Design’s Studio Camera 4K Plus allows videographers to capture stunning shots from bright studios to dimly lit environments. Such versatility is coupled with convenient features, such as the huge touchscreen LCD, control knobs, and ports. Moreover, it has a revolutionary studio camera design where durability meets portability. This camera has also an integrated large tally light that displays red, green, and orange for on air, preview, and recording, respectively. Plus, this camera is compatible with the ATEM Mini for convenient camera control and easier production.
