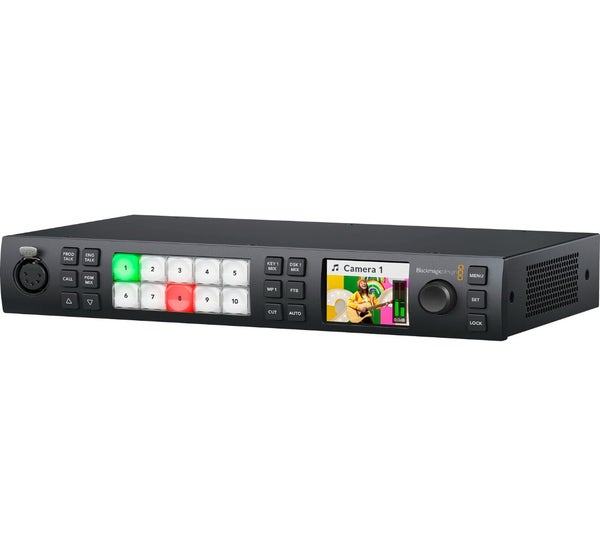

Blackmagic Design ATEM 1 M/E Constellation HD

The Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher is a compact powerhouse, delivering robust live event HD switching from a 1 RU chassis. It supports up to 10 individual 3G/HD-SDI inputs and is compatible with both 3G-SDI and HD-SDI signals. This allows for seamless connection to a wide range of cameras and sources. Program output can be achieved via six 3G-SDI BNC outputs or a USB-C webcam output. The switcher also boasts a versatile multiview output, capable of displaying up to 16 configurable windows. These can show inputs, keyed video, graphics, media pool stills, and program output. Each input is connected to an in-built Fairlight audio mixer, which can handle up to 28 audio channels. The switcher also features a reference video input, frame synchronisers, frame rate converters, and format converters, facilitating the seamless integration of mixed-format sources. Real-time upstream and downstream keyers and effects remove the need for rendering. Control options are flexible, with the integrated front panel, optional ATEM panels, or downloadable software all available.

The ATEM Constellation HD boasts broadcast-quality transitions, including mix, dip, and wipe, all customisable with adjustments for border colour, width, position, and direction. Its built-in digital video effects (DVE) processor enables professional transitions, such as picture-in-picture with 3D borders, shadows, and lighting. The multiview supports 16, 13, 10, 7, or 4-up layouts, monitoring programme, preview, inputs, media players, and clean feed. Professional talkback features include a 5-pin XLR headset connector, RJ45 for ClearCom/RTS systems, and SDI talkback via channels 15/16. The media pool stores 20 stills and 200-frame animations, while four advanced chroma keyers support high-quality virtual sets. With 10 multi-rate 3G-SDI inputs, it handles 720p, 1080i, and 1080p formats, alongside embedded audio mixing. The Fairlight audio mixer includes 6-band EQ, compressors, and noise gates. Free ATEM Software Control allows multi-user operation, while optional ATEM Advanced Panels offer industry-standard layouts with LCDs and customisable illumination.

Top Three Features: Blackmagic Design ATEM 1 M/E Constellation HD

• Supports up to 10 individual 3G/HD-SDI inputs: This feature allows for seamless connection to a wide range of cameras and sources, making it a versatile tool for live event production. It ensures compatibility with both 3G-SDI and HD-SDI signals, offering flexibility in terms of input options. This means you can connect multiple devices without worrying about compatibility issues.
• Versatile multiview output: The switcher boasts a multiview output that can display up to 16 configurable windows. This feature allows you to monitor various aspects of your production simultaneously, including inputs, keyed video, graphics, media pool stills, and program output. It's a great tool for keeping an eye on all aspects of your production in real-time.
• In-built Fairlight audio mixer: Each input is connected to an in-built Fairlight audio mixer, which can handle up to 28 audio channels. This feature ensures high-quality audio mixing for your live events. It also eliminates the need for an external audio mixer, saving you both time and space.

Our expert's opinion about the Blackmagic Design ATEM 1 M/E Constellation HD

The Blackmagic Design ATEM 1 M/E Constellation HD is a compact powerhouse that delivers robust live event HD switching. Its ability to support up to 10 individual 3G/HD-SDI inputs and compatibility with both 3G-SDI and HD-SDI signals ensures seamless connection to a wide range of cameras and sources. The versatile multiview output and in-built Fairlight audio mixer make it a versatile tool for any live event production. With real-time upstream and downstream keyers and effects, it removes the need for rendering, saving you valuable time. Its flexible control options make it a user-friendly device that's easy to operate. In conclusion, the Blackmagic Design ATEM 1 M/E Constellation HD is a reliable, high-quality switcher that's perfect for any live event production.
