Blackmagic Design HyperDeck Studio HD Mini

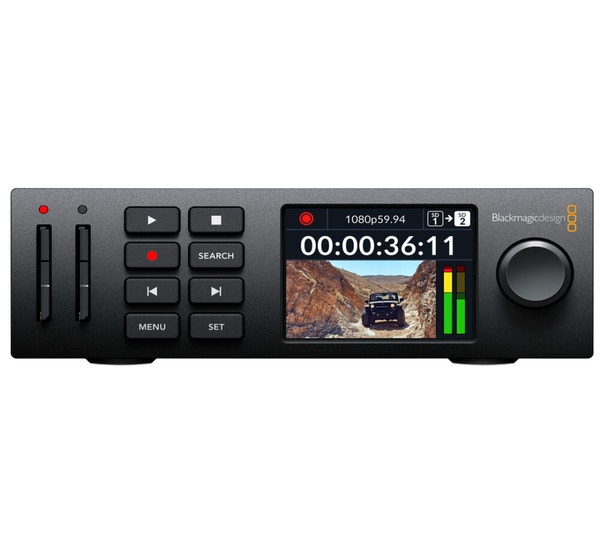

The Blackmagic Design HyperDeck Studio HD Mini, a compact, broadcast-standard recorder and playback deck, is engineered for portability and versatility. Its dimensions are a mere 1 RU in height and a third of a rack in width, with power options including 100-240 VAC or a supplementary 12 VDC supply for mobile use. It's equipped with a single 3G-SDI input, HDMI and 3G-SDI outputs, and a USB-C webcam output, facilitating concurrent input, recording, and streaming. It supports reference and timecode in/out, ensuring seamless integration into broadcast workflows and enabling ISO recordings from multiple cameras in perfect sync for live and post-production. It features two SD card slots for virtually limitless recording time, with the added option of using USB disks via the USB-C port. The front panel is designed with button controls and a jog/shuttle wheel for traditional scrubbing, complemented by an LCD for video monitoring.

The HyperDeck Studio HD Mini supports a range of video inputs, including SD, HD, and select 3G signals over SDI. It records in multiple codecs, such as Apple ProRes (422 HQ, 422, 422 LT, 422 Proxy), DNxHD (220x, 145, 45 in MXF and QuickTime formats), and H.264 (4:2:2 10-bit and 4:2:0 8-bit variants) for resolutions up to 1080p60. VTR-style controls allow intuitive recording and playback, whilst RS-422, Ethernet (1G), and USB enable remote operation. The included Blackmagic OS and HyperDeck Setup software enhance functionality, making it ideal for professional broadcast and production environments.

Top Three Features: Blackmagic Design HyperDeck Studio HD Mini

• Compact, broadcast-standard recorder and playback deck: This feature ensures the HyperDeck Studio HD Mini is easy to transport and set up, making it ideal for on-the-go broadcasting. Its compact size doesn't compromise on quality, delivering broadcast-standard recording and playback. This makes it a versatile tool for both live and post-production.
• Supports reference and timecode in/out: This feature allows for seamless integration into existing broadcast workflows. It enables ISO recordings from multiple cameras to be perfectly synced, which is crucial for live broadcasts and post-production. This ensures a smooth and efficient workflow, saving time and effort.
• Two SD card slots for virtually limitless recording time: With two SD card slots, the HyperDeck Studio HD Mini offers virtually limitless recording time. This is particularly beneficial for long broadcasts or recording sessions, as you won't have to worry about running out of storage space. Plus, the option to use USB disks via the USB-C port provides even more flexibility.

Our expert's opinion about the Blackmagic Design HyperDeck Studio HD Mini

The Blackmagic Design HyperDeck Studio HD Mini is a compact yet powerful tool for any professional broadcast and production environment. Its small size and versatile power options make it ideal for mobile use, while its range of features, including a single 3G-SDI input, HDMI and 3G-SDI outputs, and a USB-C webcam output, ensure it can handle a variety of tasks. The ability to support reference and timecode in/out enables seamless integration into existing workflows, and the two SD card slots offer virtually limitless recording time. With the added functionality of the included Blackmagic OS and HyperDeck Setup software, this device is a reliable and efficient choice for both live and post-production.
