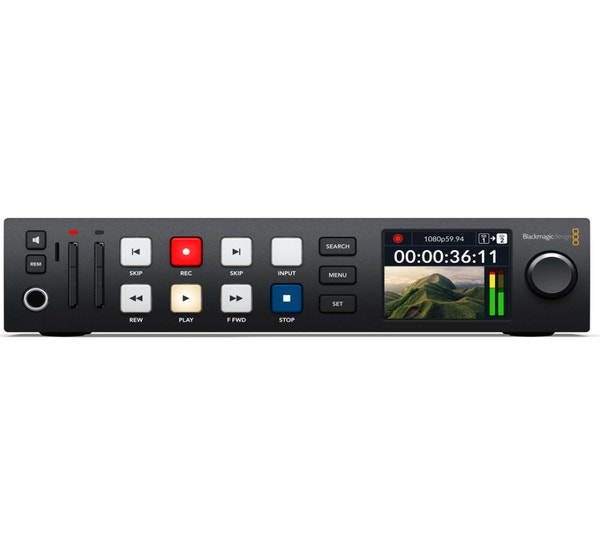

Blackmagic Design HyperDeck Studio HD Plus

The Blackmagic Design HyperDeck Studio HD Plus, a compact and versatile record/playback deck, boasts broadcast-quality in a portable design. Its compact size, measuring only 1 RU tall and half a rack wide, allows operation on 100-240 VAC or an optional 12 VDC power supply, ideal for mobile use. The deck comes equipped with a 6G-SDI and HDMI 2.0 input, two 6G-SDI outputs, and an HDMI 2.0 output, serving as a robust recording and playout solution. It also features a loop-through output, 3G-SDI monitor output, and reference/timecode in/out, making it perfectly suited for broadcast settings. The device supports recording to dual SD card slots for virtually limitless capture time or to USB disks via the USB-C port. Enhanced usability is provided by front-panel controls, a jog/shuttle wheel, and an integrated LCD, while RS-422, USB, and 1G Ethernet connectivity provide flexible remote control options.

The HyperDeck Studio HD Plus supports UHD and DCI 4K recording at up to 30 fps, with 6G-SDI outputs enabling fill and key playback at 1080p60. It accommodates HDR video and 33-point LUTs via the 3G-SDI output and works with multiple codecs, including ProRes, DNxHD, and H.264. VTR-style front-panel controls, an RS-422 deck control interface, and a built-in speaker with a 6.35mm headphone jack further enhance its broadcast functionality. The unit comes with Blackmagic OS, HyperDeck Setup software, and a one-year warranty, though a power cable is not included. Additional resources, such as the user manual, are available for download.

Top Three Features: Blackmagic Design HyperDeck Studio HD Plus

• Compact and versatile record/playback deck: This feature allows the device to be easily transported and used in a variety of settings, making it ideal for mobile broadcasting. Its compact size doesn't compromise on functionality, offering a robust recording and playout solution.
• Supports recording to dual SD card slots and USB disks: This feature provides virtually limitless capture time, ensuring that you never miss a moment. It also offers flexibility in terms of storage options, allowing you to choose the method that best suits your needs.
• RS-422, USB, and 1G Ethernet connectivity: These connectivity options provide flexible remote control options, allowing you to operate the device from a distance. This can be particularly useful in live broadcasting situations where direct access to the device may not be possible.

Our expert's opinion about the Blackmagic Design HyperDeck Studio HD Plus

The Blackmagic Design HyperDeck Studio HD Plus is a compact and versatile record/playback deck that boasts broadcast-quality in a portable design. Its robust recording and playout solution, coupled with its ability to support recording to dual SD card slots and USB disks, makes it a reliable choice for mobile broadcasting. The device's RS-422, USB, and 1G Ethernet connectivity offer flexible remote control options, further enhancing its usability. With its front-panel controls, jog/shuttle wheel, and integrated LCD, the Blackmagic Design HyperDeck Studio HD Plus is a user-friendly device that doesn't compromise on functionality.
