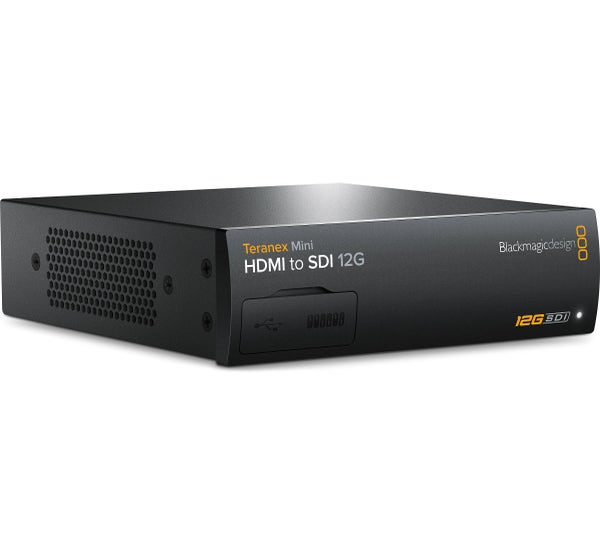

Blackmagic Design Teranex Mini - HDMI to SDI 12G Converter

The technical details behind this Signal Converters

Blackmagic Design Teranex Mini - HDMI to SDI 12G Converter offers excellent features and compact design. Supporting up to 12G-SDI data rates with intelligent heat dissipation, and providing features such as XLR connections and an Ethernet control and PoE port, it is a highly improved solution for rack-mount as well as cable duct and desktop installations. Connect an HDMI signal in up to Full 4K DCI 4096x2160p resolution and route it out over up to two independent 12G-SDI outputs in the same resolution. Route 4096x2160p signals approximately 70 ft using 6G-SDI cables, and run lower-resolution signals, such as 3G-SDI or HD-SDI, for much longer than standard lengths. When 12G-SDI cables will be available on the market, you will be able to run 4K DCI 4096x2160p signals for over 250 ft. You can connect separate audio via full-size XLR inputs that are switchable between balanced analog and AES/EBU digital audio. The compact design of the Teranex Mini makes it extremely useful for portable racks at live events or in broadcast trucks.

Key Features

• Run 4096x2160p 70 ft Using 6G-SDI Cables
• Supports Up to 4K DCI 4096x2160p Signals
• Advanced High-Data Rate Signal Converter
• Two Independent 12G-SDI Outputs

Top three Reasons we think you will love this Signal Converters

• Compact
• Great Performance
• Intelligent thermal design heat dissipation effectively prevents overheating

Our expert's opinion

Excellence and reliability in every corner. A major benefit of the Teranex Mini is that the standard front panel can be replaced with an optional Smart Panel that offers a spin knob, colour LCD, and six control buttons, including a menu button. The substantially large LCD will show you the video conversion in progress and will allow you to monitor audio levels as well as verify the timecode and the video standard being converted. What enables the Teranex Mini to dissipate heat so effectively and prevent overheating is a smart thermal design with crossflow cooling that achieves the optimal heat dissipation even when you have units rack-mounted side-by-side one another. An intelligent thermal subsystem and internal heat pipe assist with cooling and keep the air flowing at all times while minimizing noise.
